Marine Navigation Radar

RD-2060
The navigation radar uses a high-speed data processor, with powerful signal and data processing functions, high-definition target display, and fast target tracking functions. It has gain, wave and rain and snow suppression. This radar has strong detection capabilities especially for small targets.

Consult

Features Technical Indicators Overall Dimension

Key Features
Automatic tracking and MARPA functions.
Sea clutter suppression function.
Rain and snow clutter suppression function.
Same-channel interference suppression function.
Warning area monitoring and guarding functions.
Trail display function.
Automatic tuning function.
Equipment self-detection function.
Main Features
Integrated structural design, small size, light weight, easy to install and maintain.
Precise 120cm crack waveguide antenna, wind speed resistance above level 7, protection level reaches IPX6.
The 12-inch LCD display quantifies the target in 8 levels, thus providing target clarity.
It has continuous working, standby and duty (power saving) working modes.
With five network interface functions, users can easily connect other display devices.

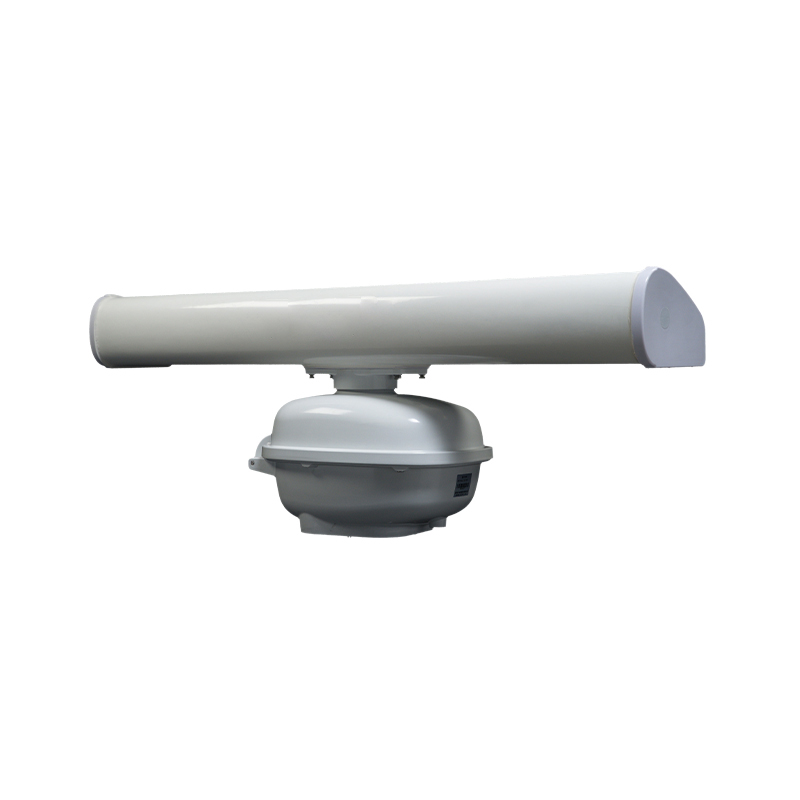

Long Pole Antenna

Output Power	6kw
frequency	9410±30MHz
Speed	24rpm
Horizontal beam	2.0°
Vertical beam	25°
Range	0.25-48nm
Distance accuracy	25 meters
Distance blind spot	25 meters
Azimuth accuracy	±1°

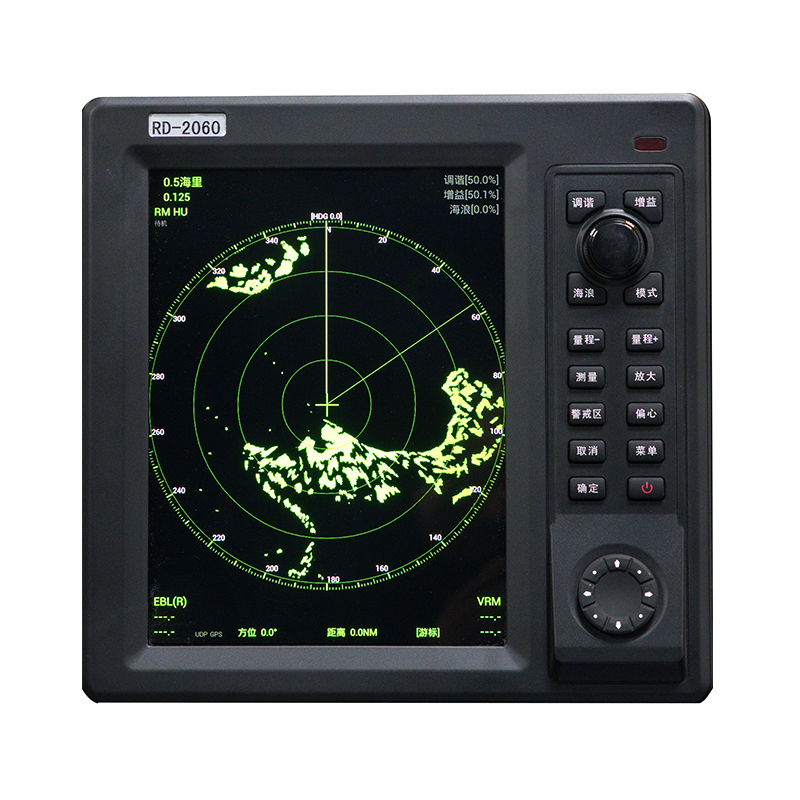

Display Unit

monitor

12-inch color LCD screen

Display Mode

Heading up, heading up, true north up, true motion

*Must be connected to the bow signal source

Other features

Target tracking, trail display, automatic tuning, co-frequency interference, electronic bearing line

Environment

temperature

Antenna: -25℃~+55℃

Display -15℃~+55℃

Power Supply

power supply

DC21V~32V
