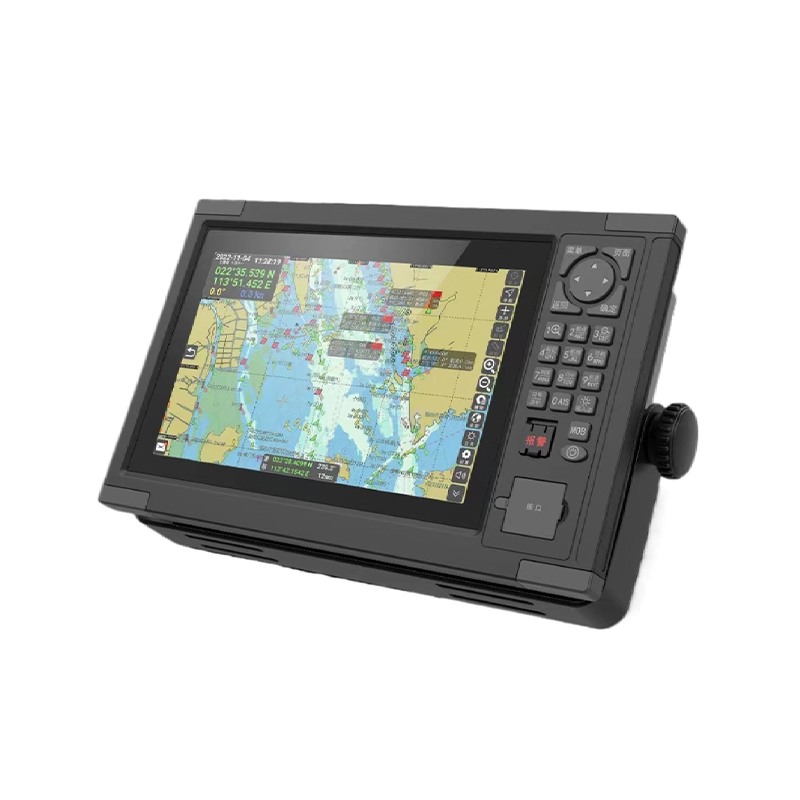

Marine Multi-Function Terminal

MD-1088
The MD-1088 multi-function shipborne terminal adopts a high-performance, low-power domestic CPU, has rich data interfaces, fast running speed, large storage space, and supports high-definition picture display. The terminal integrates electronic charts, GNSS positioning, AIS automatic identification system, radar, fish finders and Beidou short message modules. It also has multiple networking communication methods such as WIFI, 4G, Bluetooth and satellite, which can realize the interaction of dynamic and static information on the ship with the shore station, providing favorable technical support for the safe navigation and intelligent management and control of ships.

Consult

Features Technical Indicators Overall Dimension

Adopt high-performance CPU, fast running speed and large storage space.
Adopt multi-touch capacitive touch screen, smooth touch, simple and easy human-computer interaction.
Rich interfaces, support multiple data interface input and output, strong compatibility and scalability.
Supports standard S57 and CJ57 electronic charts, and can realize remote online upgrade.
Support single Beidou, BDS, GPS dual-mode high-precision positioning.
Support network video surveillance camera access function to display ship dynamic information.
Equipped with 4G, WIFI, Bluetooth and other interfaces to achieve network communication between data.
With standard USB, TF and other interfaces, it is convenient for data storage, import and export.
Support standard Class B AIS data access (or built-in) to realize automatic identification of ships.
Support Beidou short message terminal access function to realize Beidou remote monitoring and management of ships.
Supports NITECH radar data access function.

Product Specifications

Dimensions	330×208.6×81.5 mm
Screen size	10.1 inches
Display resolution	1280×800 pixels
Screen viewing angle	Horizontal viewing angle ≥ 170°, vertical viewing angle ≥ 170°
CPU frequency	≥2 GHz
Memory	2G (4G optional)
Local Storage	16G (32G optional)
SD card expansion	Maximum support 512G
Waterproof grade	IPX6

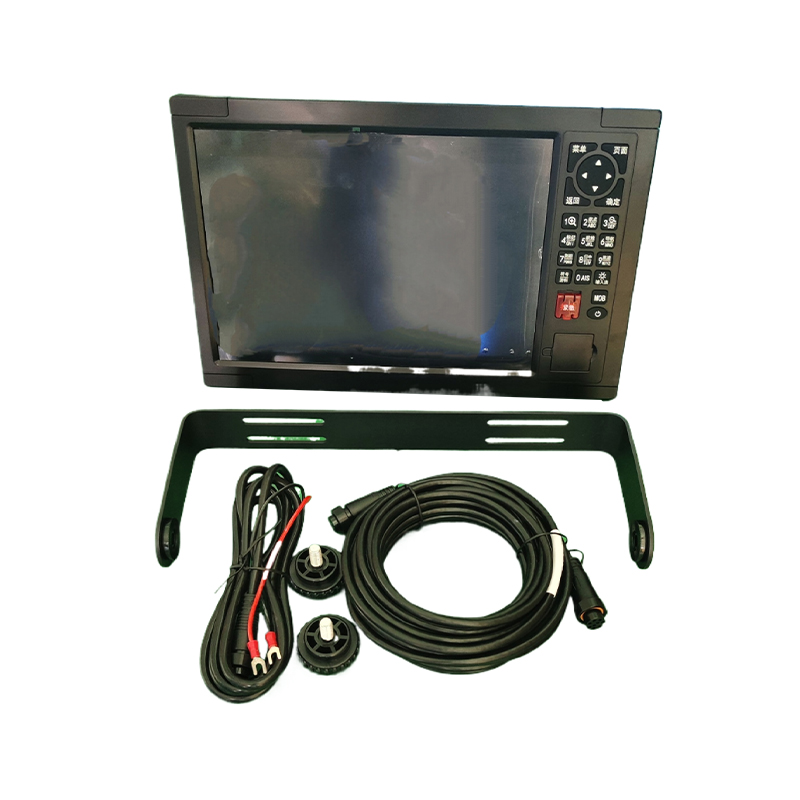

Installation	Embedded or bracket
Operating voltage	DC 10～32V

Electronic charts and interfaces

Preset charts	NITECH Electronic Chart
Number of card slots	1 TF card slot, 1 USB port
Number of waypoints stored	200,000
Number of track storage	200 items
Route storage quantity	200 items
Number of markers stored	200,000
MOB Point	20

Communication and interface

Positioning antenna	Built-in or external
NMEA0183 input interface	1
NMEA0183 output interface	1
Wireless connectivity	4G, WIFI, Bluetooth optional

AIS Automatic Identification System

Class B AIS module	Built-in or external/card-mounted AIS
AIS ship list function	support
AIS radar chart display function	support
AIS alarm function	One-button alarm/meeting alarm
AIS Chinese ship name display function	support

Extended functions and interfaces

Navigation radar	External NITECH navigation radar, network port
Beidou short message	Support 2.1 and 4.0 standard protocols, Beisan, RS422/232 serial port
ID card recognition module	Built-in or external, USB interface
Fish Finder/Transducer	External, RS232 serial port
microphone	support
Remote Control	support
Camera	Network camera, supports more than 6 channels
