Automatic Identification System (AIS)

AI-1058

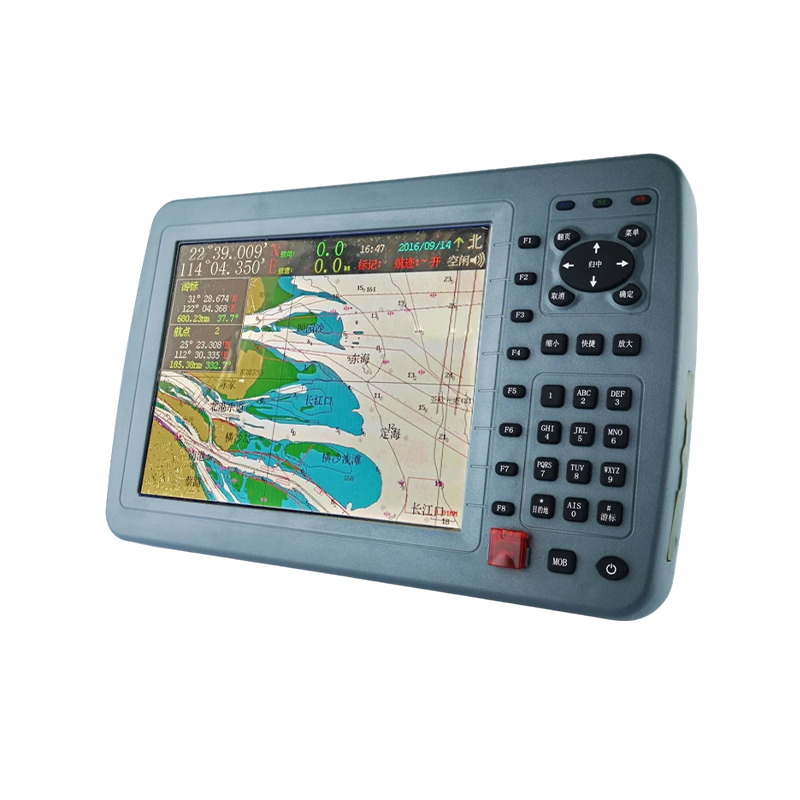

The AI-1058 AIS chart integrated terminal has fast running speed and large storage space. It can monitor the operating status of the ship in real time and provide functions such as ship trajectory playback and navigation data analysis. The terminal also integrates NITECH electronic charts and GNSS/Beidou positioning, which can effectively avoid collision risks and ensure navigation safety.

Consult

Features Technical Indicators Overall Dimension

Encryption software can be installed, suitable for military, police, and various law enforcement ships.

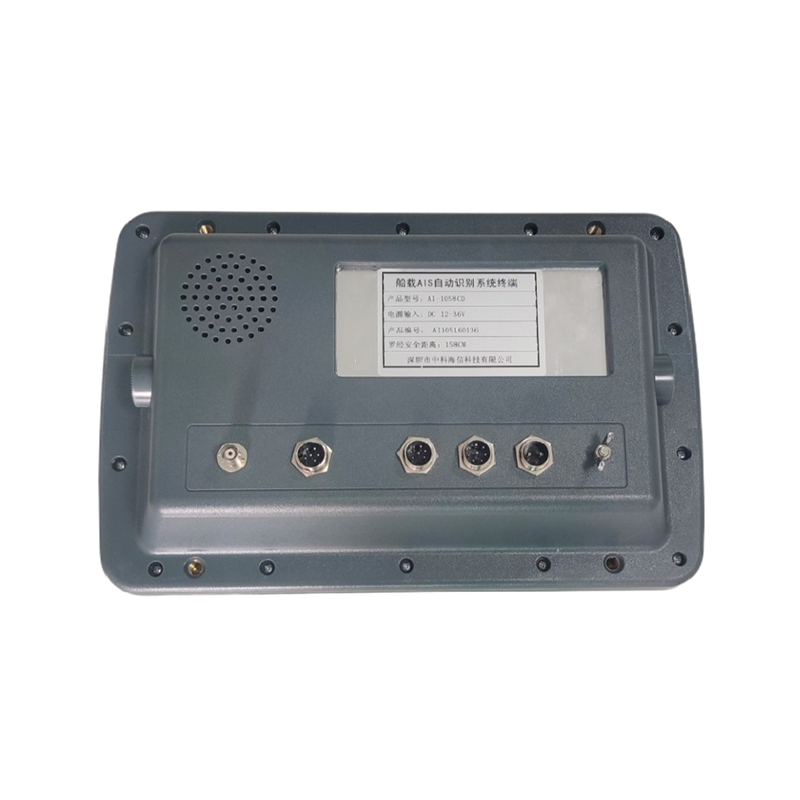

It has rich interfaces, supports multiple data interface input and output, and has strong compatibility and scalability.
It has navigation alarm functions: arrival, deviation, anchor shifting, track storage full, bridge alarm.
It can automatically record the dynamic data of the ship and surrounding AIS for more than 3 months.

Product Parameters

model	AI-1058
Dimensions	34522596mm
Screen size	10.1 inches
Resolution	1280*800
Operating voltage	DC24V(10-32V)
Operating frequency	156.025～162.025MHz
Installation	Bracket or embedded

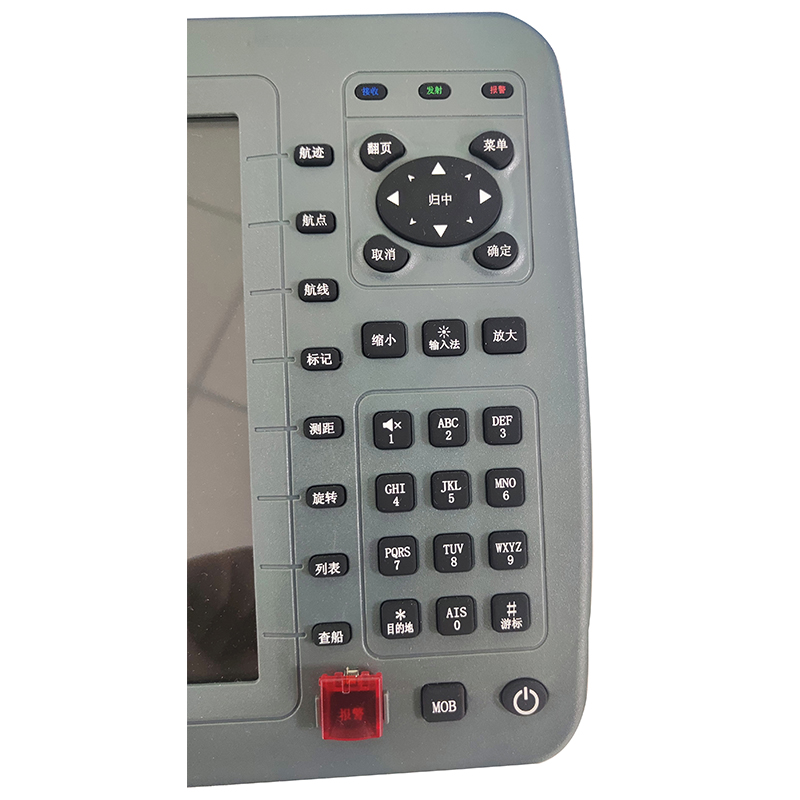

Control method	button
Receiving Type	GPS/Beidou
Chart Types	S57, CJ57
Receiving sensitivity	＜-107dBm@Bit error rate＜20%
AIS Performance	Built-in Class B AIS standard transceiver module
bandwidth	25kHz
Transmit power	2W
Data storage	10,000 waypoints, 10,000 tracks, 100 tracks
Data Display	Vessel's latitude and longitude, speed and heading, date and time

Technical Parameters
Project Name	Technical Parameters	Project Name	Technical Parameters
Positioning accuracy	±15m	Storing waypoints	10,000 waypoints
Receiving frequency	156.025-162.025MHz	Store routes	20 routes
Receiving sensitivity	Better than -107dBm	Store track	100,000 track points, 100 track lines
Adjacent channel selectivity	More than 70dB	Storage Tags	32 types, totaling 20,000 markers
Transmit power	More than 2 W	Display resolution	10.4" (800×600 color LCD)
Power consumption	15W	Dimensions	345mm×225mm×96mm
Channel spacing	25KHz	Operating voltage	12~36V DC
Positioning accuracy	±15m	Operating temperature	-15℃~50℃
Repositioning time	<5S	Relative humidity	95% at 40℃

Accessories List

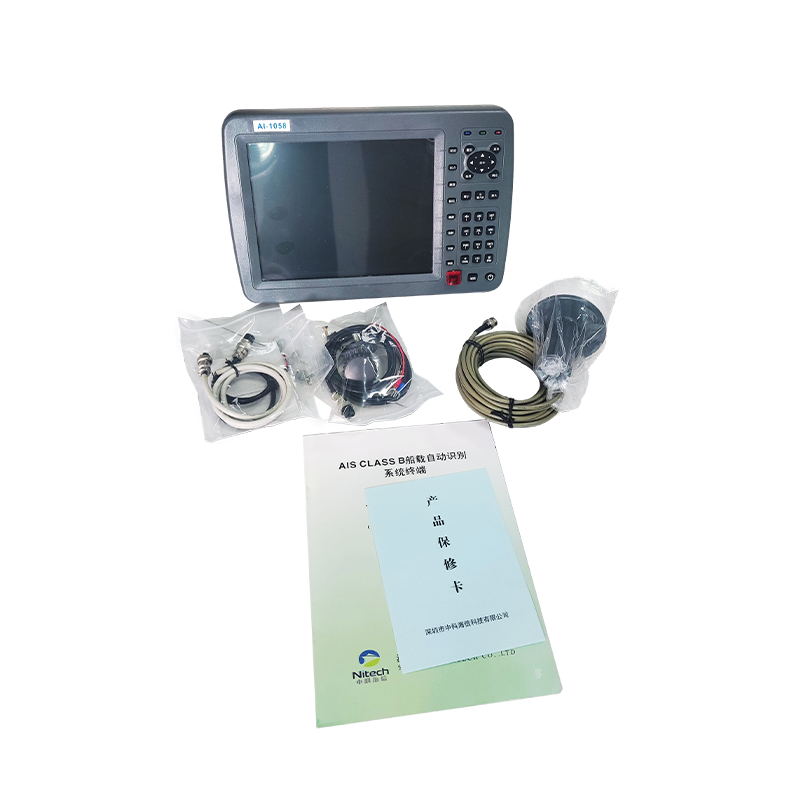

Packing List
Serial number	name	quantity	Remark
1	Display	1 unit
2	GPS Antenna	1 root
3	Bracket	1
4	Mounting knob	2
5	Fixing screw	4
6	Antenna clamp	1
7	Power cord	1 root
8	manual	1
